10811256mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box

Name: 10811256mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box
Brand: AnBox
Price: 11.25 USD

Buy cheap 108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box product

Brand Name : AnBox

Model Number : BRT80010

Certification : ROHS

Place of Origin : China

MOQ : 1pc

Price : USD11.25

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000pcs / day

Delivery Time : 5-8 working days

Packaging Details : cartons

External Size : 174*139*57mm

Operating Temperature : -20°C~80°C

Application : Industrial control shell

Material : Fire retardant ABS

FIRE RESISTANCE LEVEL : UL 94 V0

Color : Light grey

Contact Now

**10811256mm High Quality Din Rail Enclosure For Electronic Diy Fireproof Material Plastic Housing Distribution Box**

DIN Rail Enclosures

DIN rail enclosures are designed to internally mount complex circuit controls on custom-cut Polycase DIN rail kits.

The kits can be mounted horizontally or vertically within the base of the 35mm DIN Rail enclosure.

Meeting several NEMA and IP ratings, our electrical enclosures with DIN rail are suitable for use in harsh environments.

Made from durable polycarbonate or ABS plastic, DIN rail enclosures are available in a range of sizes to accommodate electrical or electronic applications.

Features of the din rail enclosure

BRT80010 is Durable UL94V-0 rated ABS blend plastic housing
Suggested service temperature -20C to +80
Three levels of PC board mounting locations – PC boards not supplied
Bottom level accepts PC board with modular type terminals on 0.2″ centers
Removable terminal guards have snap-off tabs to match number of terminals used
Snap-fit design allows tool-less assembly of all parts including PC boards
Snap-fit front cover is easily removable for machining or silk-screening
Optional clear and infra red polycarbonate covers available
Fits standard 35mm DIN rail
Finish: Light Gray

Product name	Din rail plastic enclosure
Products model	BRT80010
Product specification	11210856mm [4.414.252.20inch ]

Material	abs raw material
Net weight	110g
Flame retardant grade	UL 94 V0
Application	Electronic & Instrument Enclosures
Costom service	color, cut holes, print ,open new mold. etc

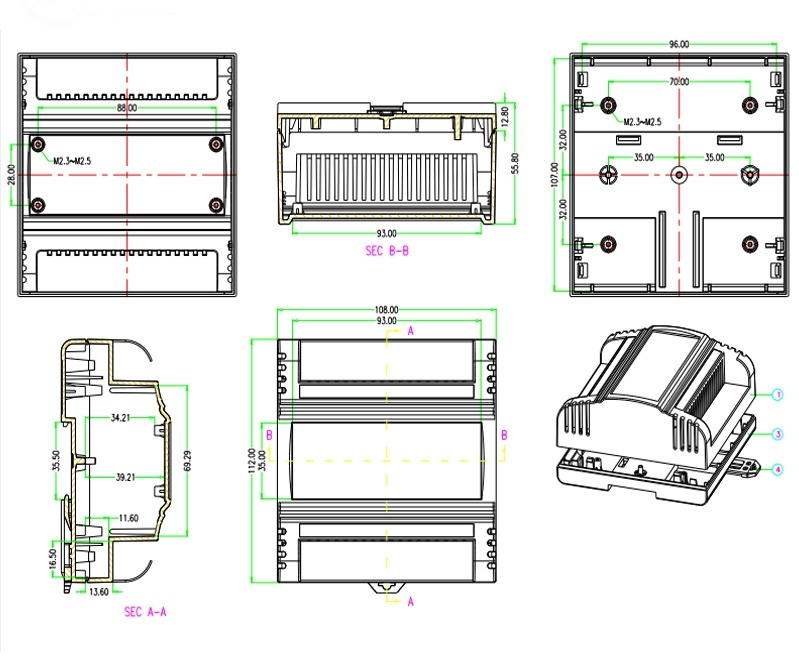

Drawing

108*112*56mm Din Rail Enclosure For Electronic Diy Fireproof Plastic Housing Distribution Box
